DT II, DT II (A) fixed belt conveyor

Time:2016-04-15　Form:Jiangsu Wuyun　Hit:3955

/
/
1.Use and scope of application
DT II, DT II (A) fixed belt conveyor is a general type product with domestic unified design. The calculation method of its main parameters, transmission power and tension adopts ISO international standards. The product is widely applied to various industries such as metallurgy, mine, coal, transport, construction material, chemical engineering, light industry, harbor, power, petroleum, etc. It transports material through transmission system combined by single or multiple units, and can transport various kinds of bulk material and items packed in sets with density ranging from 500 to 2500kg/m3.
This conveyor is applicable to operation environment with temperature around -25℃~40℃. With corresponding protective measures applied, it can also operate under conditions with special requirements, such as explosion-proof, waterproof, fire-retardant, corrosion/high temperature/cold resistant.

2.Technical features and structure diagram
?Transport capacity of belt conveyor is below 2.5t/m3
?Belt conveyor can be divided into the following categories according to belt width: 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400
?Belt conveyor can be divided into the following categories according to belt velocity: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0, (4.5), 5.0, (5.6), 6.5

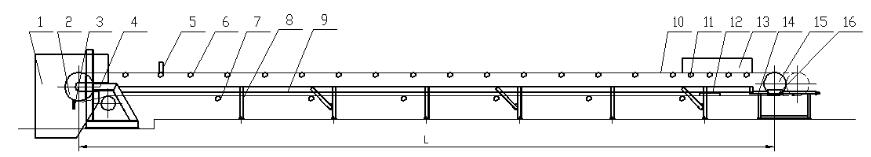

DT
1. Head funnel 2.Head drum 3.Spring cleaner 4.Headstock 5.Protective device 6.Carrying idler 7.Return idler 8.Landing leg 9.Middle frame 10.Tape carrier 11.Buffer idler 12.Nonload section cleaner 13. Material-guiding groove 14.Tailstock 15.Tail drum 16.Tension device

3. Main technical parameters

Belt width (mm)

0.8

1.0

1.25

1.6

2.0

2.5

3.15

4

(4.5)

5.0

(5.6)

6.5

500

69

87

108

139

174

217













650

127

159

198

254

318

397













800

198

248

310

397

496

620

781











1000

324

405

507

648

811

1014

1278

1622









1200



593

742

951

1188

1486

1872

2377

2674

2971





1400



825

1032

1321

1652

2065

2602

3304

3718

4130





1600









2186

2733

3444

4373

4920

5465

6122



1800









2795

3494

4403

5591

6291

6989

7829

9083

2000









3470

4338

5466

6941

7808

8676

9717

11277

2200













6843

8690

9776

10863

12166

14120

2400













8289

10526

11842

13158

14737

17104
Notes: 1. The transport capacity in the table is calculated under horizontal transport condition, when angle of move of material = 20°, groove angle of idler = 35°.
2. The belt velocity in the table (4.5m/s, 5.6m/s) is not a standard value, and is generally not recommended for application.
